HD Dump Trailer
GNDTSS (20000# GVWR)Dump Trailer
HD Dump Trailer
Super Single Dump is equipped with 10000# Dexter Axles with Electric Brakes for a 20000# GVWR. (4)235-85r17.5J rated 6000cap tires for 24k total cap on the tires. HD 10ga sides and floor. HD Scissor hoist with 20k Capacity. Dual action doors, Front toolbox and side underbody box.
| Size | Model |
| 6’10″X18′ | GNDT18610-20EE (E-BRAKE) |
| 6’10″X20′ | GNDT20610-20EE (E-BRAKE) |
| 6’10″X24′ | GNDT24610-20EE (E-BRAKE) |
Location
1005 S Front Street
Bellville, TX 77418
Phone
979-865-5467, EXT.124
Open Hours
Mon:8am – 5pm
Tue: 8am – 5pm
Wed: 8am – 5pm
Thur: 8am – 5pm
Fri: 8am – 4pm
Sat: Closed
Sun: Closed
Tue: 8am – 5pm
Wed: 8am – 5pm
Thur: 8am – 5pm
Fri: 8am – 4pm
Sat: Closed
Sun: Closed
Contact Us
GNDTSS (20000# GVWR) Standard Features
| AXLES | DEXTER 10000# AXLES |
| BRAKE | (2)ELECTRIC BRAKES |
| COUPLER | GOOSENECK 2 5/16 ADJUSTABLE |
| CROSS MEMBER | c6 x 13# CHANNEL |
| FENDERS | 1/8″ DIAMOND PLATE |
| FLOOR | 10GA |
| MAINFRAME | W12X22# IBEAM |
| FRAME NECK | W12X16# IBEAM |
| GVWR | 20000# |
| JACK | 12000LB SPRING LOADED DROP LEG JACK |
| LIGHTS | LED LIGHTS ENCLOSED STEEL BOXES |
| MOUNT | SPARE TIRE MOUNT |
| PAINT(VALSPAR) |
COMMERCIAL BLAST EPOXY PRIMER URETHANE TOPCOAT |
| BODY | 10GA DUMP BODY |
| RAMP | 6′ SLIDE IN RAMPS |
| SAFETY | HD SAFETY CHAINS |
| STORAGE | TOOLBOX BETWEEN UPRIGHTS |
| TIRES | 235-75R17.5 J 18PLY LIONSHEAD |
| WHEELS | 17.5″ STEEL 8 LUG |
| ELECTRICAL | SEALED HARNESS RAN THROUGH FRAME |

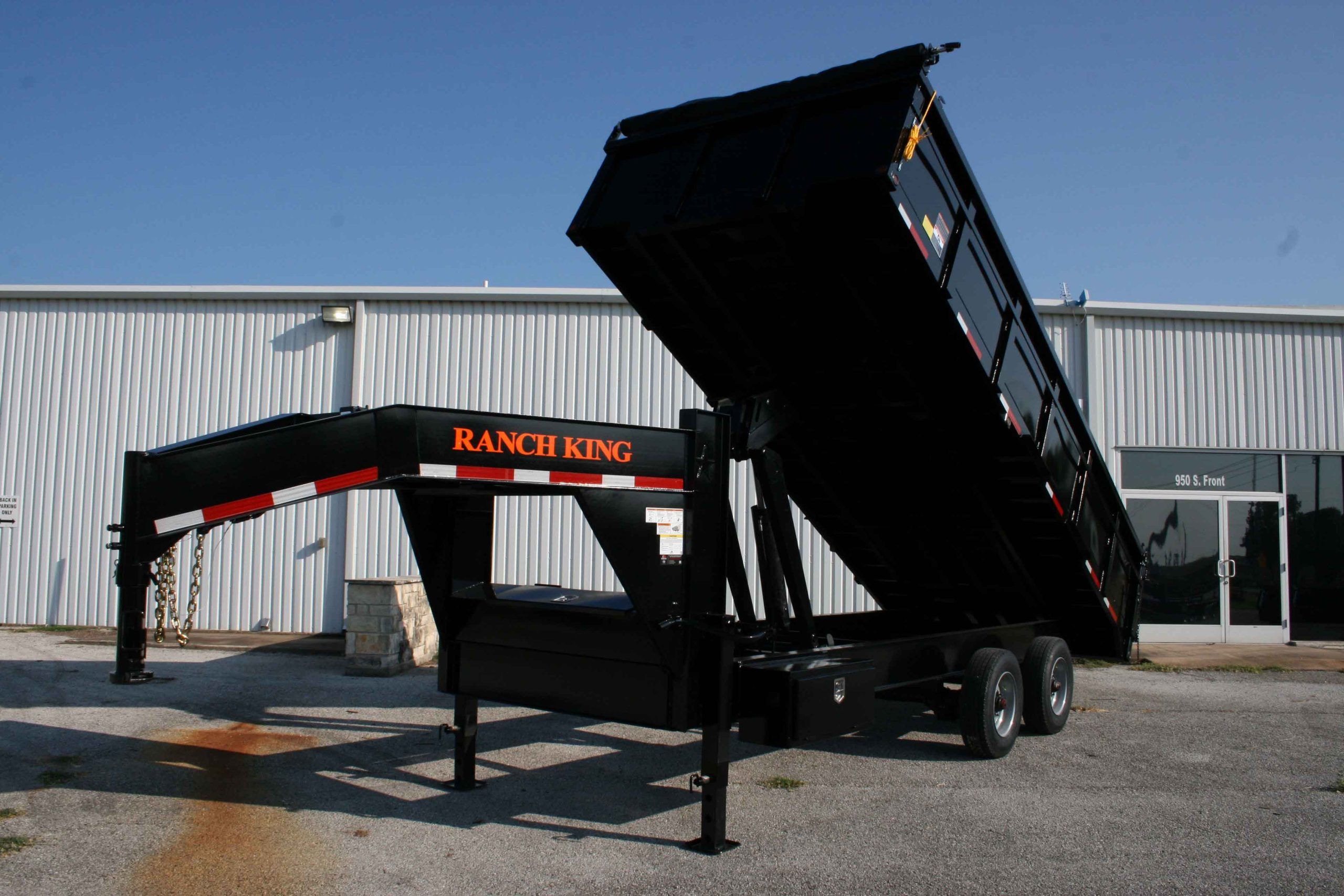

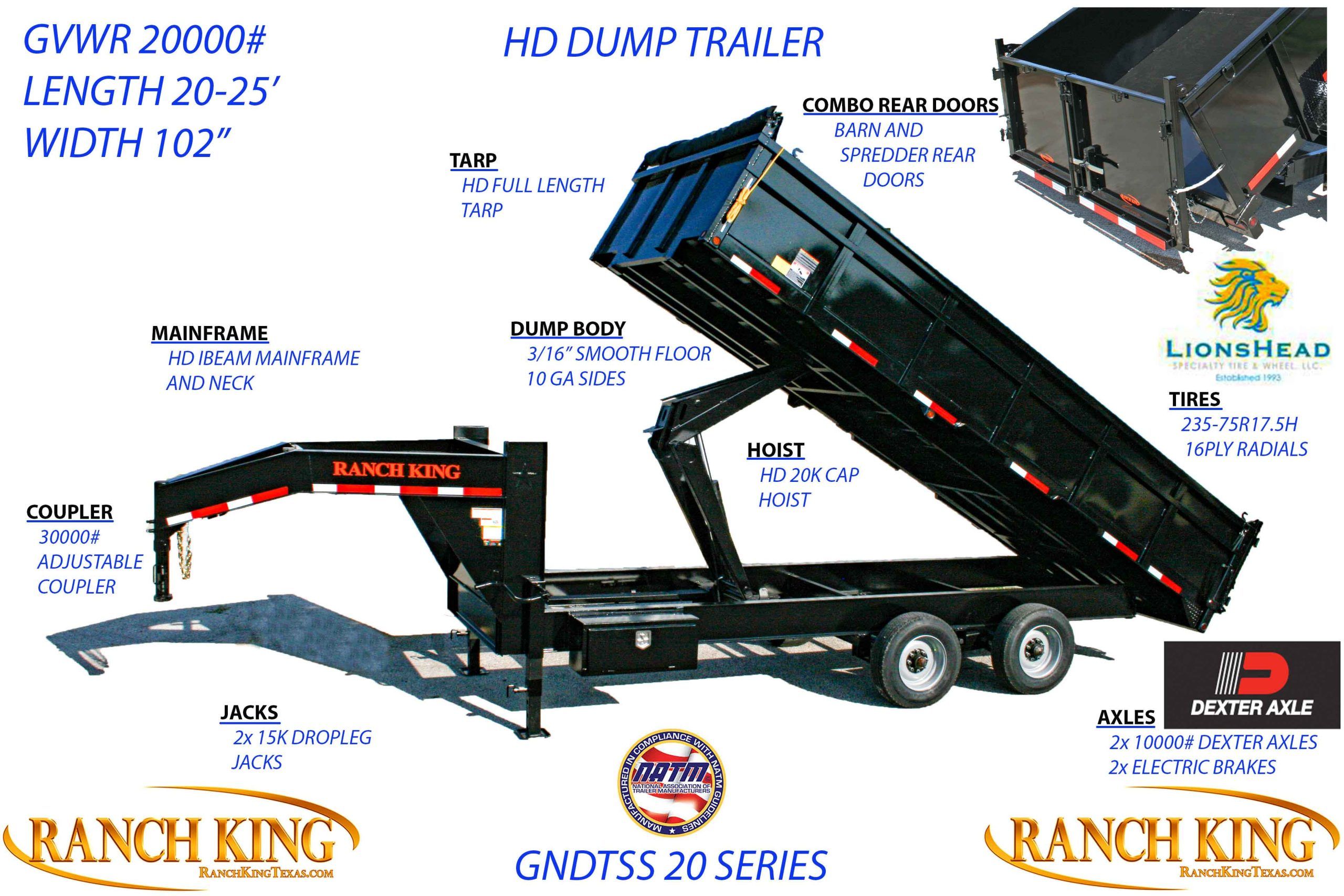

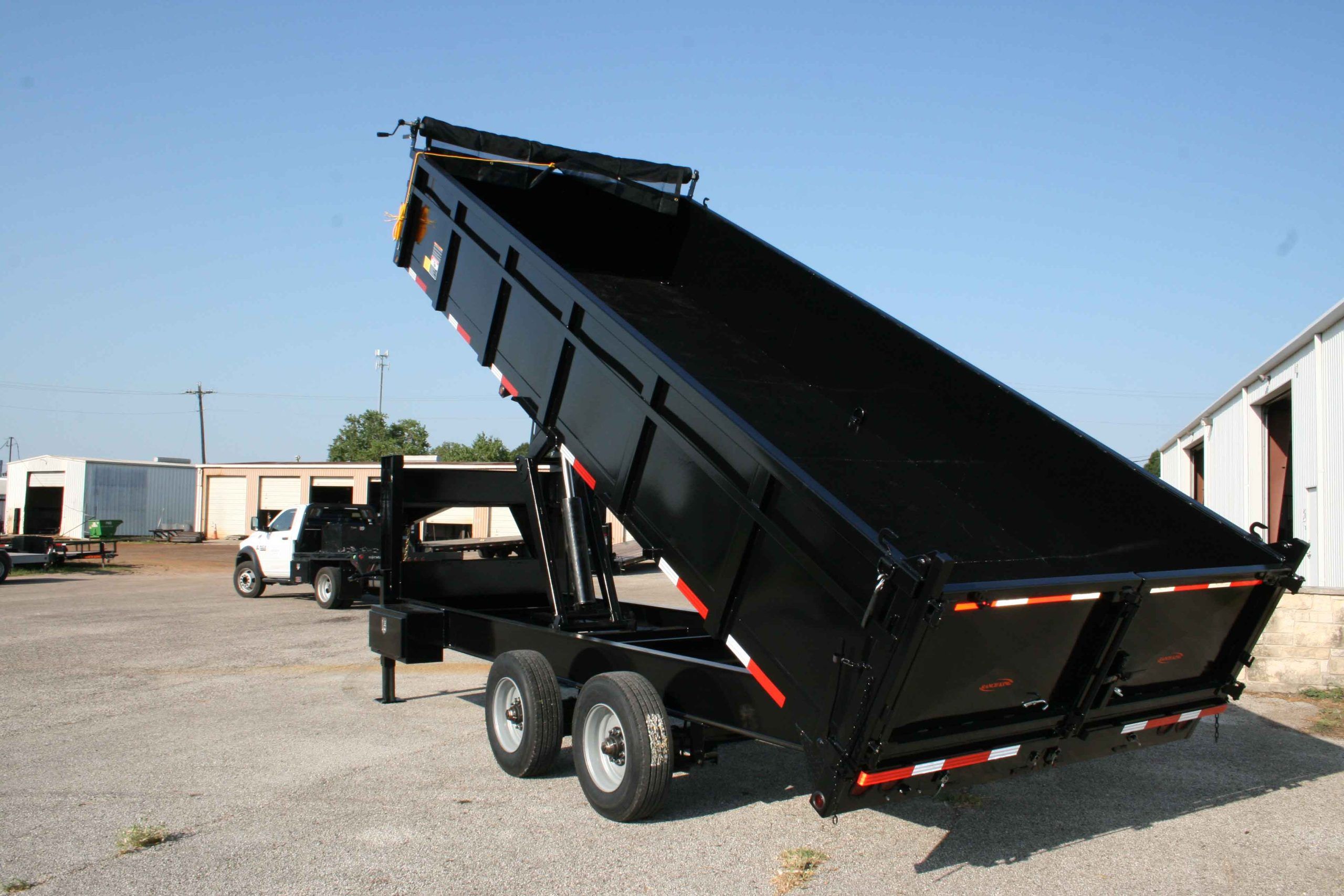

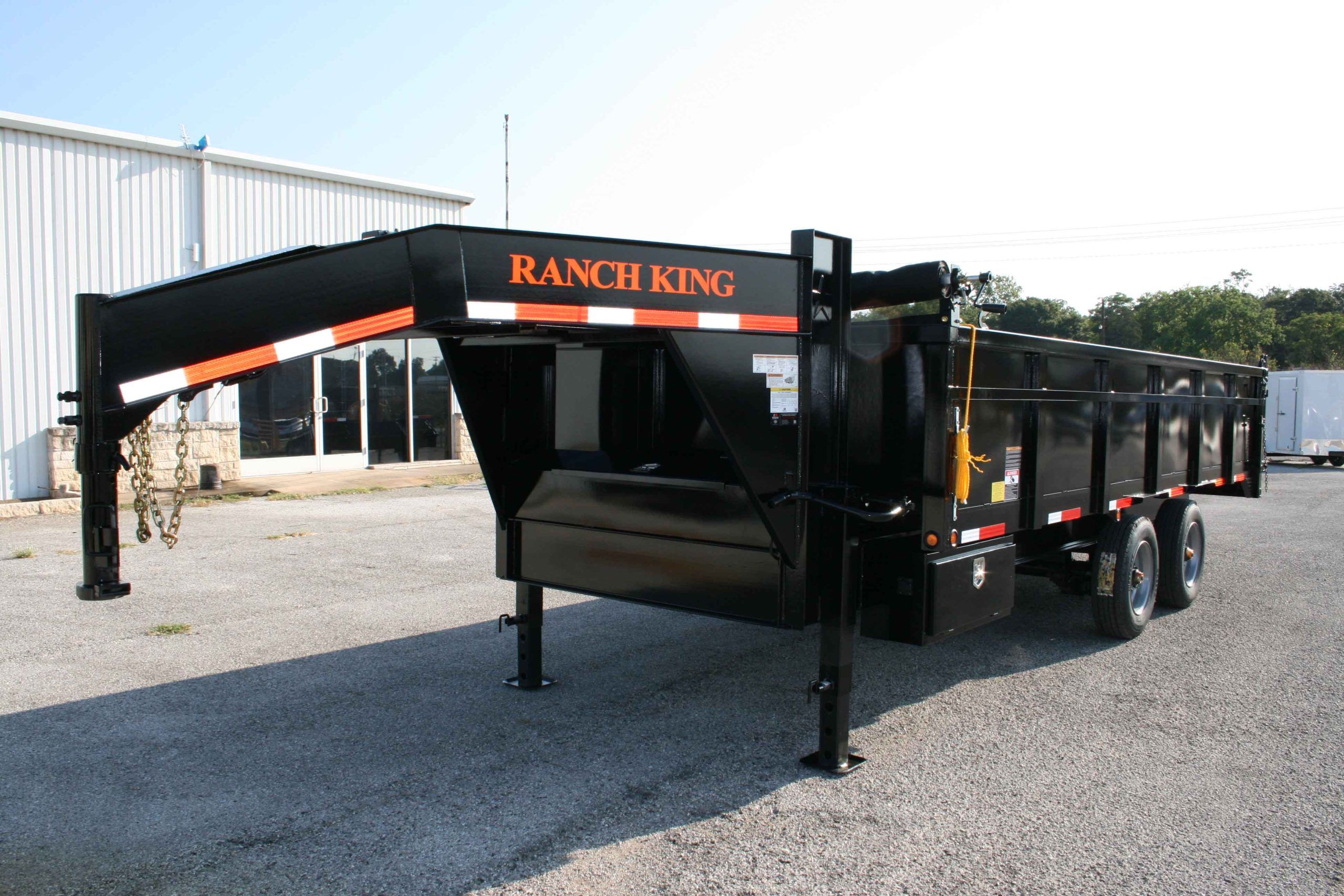

GNDTSS (20000# GVWR) Photos
GNDTSS (20000# GVWR) Optional Features
| HYDRAULIC DISC BRAKE UPGRADE | |
| HYDRAULIC DRUM BRAKE UPGRADE | |
| SPARE TIRE WHEEL | |
| 3/8″ D-RINGS (specify location) | |
| 3/16″ FLOOR UPGRADE |
